The case of mysterious BGP session resets caused by a malformed OTC attribute

 We recently ran into an unusual issue: BGP sessions were resetting with no obvious explanation shortly after routers received new routes. To understand what was happening, we collected and analyzed the BGP UPDATE messages that consistently triggered the errors.

It quickly became clear that all problematic routes had one thing in common: they carried a malformed OTC attribute. The real root cause, however, was not just the presence of a bad attribute, but the way different routers reacted to it. Before looking at that behavior, it helps to recap what OTC is and how it is supposed to work.


What OTC is and how it works

OTC (BGP Only to Customer) is one of the two core components of the BGP roles framework defined in RFC9234. The framework, co-developed by Qrator engineers, is designed to detect and prevent route leaks.

OTC is an optional BGP UPDATE attribute with a standard-defined length of 32 bits (4 octets). Its value is an ASN that is designated as the route origin for the downstream portion of the route. OTC works together with the BGP Role mechanism, which defines the relationship between two autonomous systems when they establish a BGP session (such as Provider–Customer, Peer–Peer, or RS–RS Client).

RFC9234 defines the OTC processing logic as follows:

The following ingress procedure applies to the processing of the OTC Attribute on route receipt:

1. If a route with the OTC Attribute is received from a Customer or an RS-Client, then it is a route leak and MUST be considered ineligible (see Section 3).
2. If a route with the OTC Attribute is received from a Peer (i.e., remote AS with a Peer Role) and the Attribute has a value that is not equal to the remote (i.e., Peer's) AS number, then it is a route leak and MUST be considered ineligible.
3. If a route is received from a Provider, a Peer, or an RS and the OTC Attribute is not present, then it MUST be added with a value equal to the AS number of the remote AS.

The following egress procedure applies to the processing of the OTC Attribute on route advertisement:

1. If a route is to be advertised to a Customer, a Peer, or an RS-Client (when the sender is an RS), and the OTC Attribute is not present, then when advertising the route, an OTC Attribute MUST be added with a value equal to the AS number of the local AS.
2. If a route already contains the OTC Attribute, it MUST NOT be propagated to Providers, Peers, or RSes.

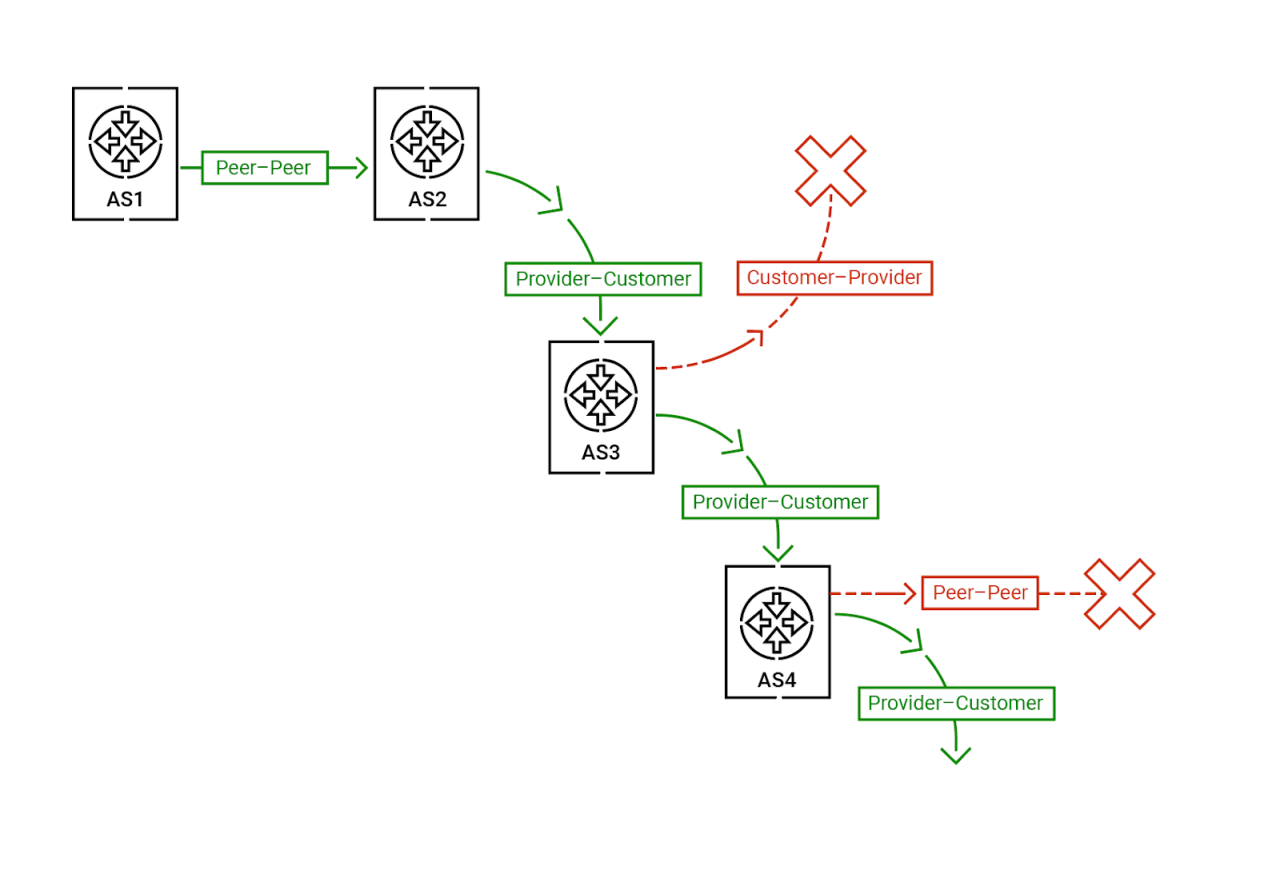

How BGP Role and the OTC attribute work

 In short, BGP Role and OTC let participating networks verify that routes propagate only in the intended direction, and detect cases where they do not — that is, route leaks.

RFC9234 also allows OTC to be added to otherwise legitimate routes where it is missing. This can be done both on egress by a transit AS that forwards the route, which writes its own ASN into OTC, and on ingress, by the receiving AS, which records the ASN of the neighbor that advertised the route. As a result, route leaks can be prevented even when the original route originators do not support RFC9234, effectively creating a form of collective immunity.

What the error messages looked like

 Returning to our case, the immediate trigger for the BGP session resets was that some autonomous systems were sending BGP UPDATE messages with an incorrectly set Extended Length field inside the OTC attribute.

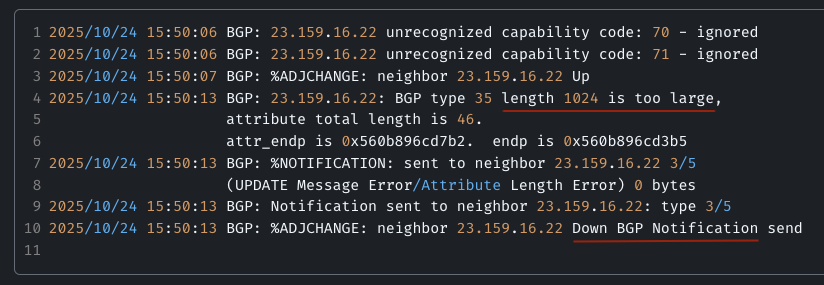

Incorrect OTC attribute size and the resulting BGP session reset

To understand the root cause of the failure, let’s examine a hex dump from one of the UPDATE messages that triggered a session reset. In this case, the fragment containing attribute type 35 (OTC) was: “f0fa 0423 0000 4cfe”

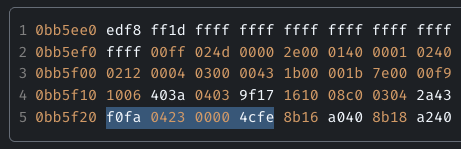

Hex dump of an UPDATE message that triggered a BGP session reset

Because OTC is relatively new, many routers may not recognize it, but they still need to parse it somehow. Let's walk through the parsing as well (reading bytes in two-byte words with the right byte first, then the left) to determine how much memory the attribute is supposed to occupy and then extract its content.

• 0xfa — part of the previous attribute (Community), which we skip.
• 0xf0 — 0b11110000, attribute flags: Optional=1, Transitive=1, Partial=1, Extended Length=1.
• 0x23 — 35, attribute type, which corresponds to OTC.

The attribute length is determined by two elements:

1. The Extended Length (EL) flag. If EL=0, the length field is 1 byte; if EL=1, it is 2 bytes.
2. The length value itself.

When EL=1, the next two bytes are interpreted as the length. In this case, the next byte is:

• 0x04 — 4, would normally indicate the expected attribute length. However, because the Extended Length flag was set incorrectly, the parser also treated the following byte (0x00) as part of the length field. As a result, the length was read as 0x0400, that is, 1024 bytes, which triggered an error.
• 0x00004cfe — 0xfe4c or 65100, the attribute value (a private ASN in this example).

In other words, the issue appears to come from an implementation error in relatively new functionality: the EL flag and the actual encoding of the length field did not match.

Why a malformed OTC attribute caused BGP session resets

 Once these malformed UPDATE messages began circulating between routers and autonomous systems, different implementations handled them in different ways:

• Some routers probably dropped the invalid route and continued operating normally. We say “probably” because such behavior is fundamentally unobservable: once the route is discarded, it is neither propagated nor visible downstream.
• Other routers attempted to correct the issue by rewriting the attribute’s EL flag to the expected value.
• Others ignored the inconsistency and forwarded the route with the malformed attribute intact.
• Finally, some routers reset the BGP session upon receiving the malformed attribute.

This last behavior is exactly what we observed in our case. But why were these routers reacting this way? RFC9234 explicitly defines how a malformed OTC attribute must be handled:

“The OTC Attribute is considered malformed if the length value is not 4. An UPDATE message with a malformed OTC Attribute SHALL be handled using the approach of ‘treat-as-withdraw’ [RFC7606].”
To put it simply, the standard requires that routes carrying a malformed OTC attribute be rejected. Unfortunately, as we observed, not all routers followed this requirement: instead of discarding the route, some forwarded the malformed UPDATE further or even reset the BGP session.

The latter behavior was clearly the result of routers acting not under the treat-as-withdraw procedure defined in RFC7606, but under an older rule specified in the base BGP specification:
 “According to the base BGP specification [RFC4271], a BGP speaker that receives an UPDATE message containing a malformed attribute is required to reset the session over which the offending attribute was received.”


Conclusions

Bugs and edge cases are inevitable when new standards are introduced, but they must be identified and corrected in production software. This OTC incident shows that even when an RFC provides explicit guidance, real-world implementations can diverge significantly. In practice, this leads to unpredictable outcomes — from the silent propagation of malformed routes to seemingly inexplicable BGP session resets.

The correct approach in such cases is consistent adherence to standards, specifically the RFC9234 requirement to apply the RFC7606 treat-as-withdraw procedure to the messages carrying malformed OTC attributes. The faster vendors and operators implement the specification correctly, the more resilient the global routing infrastructure becomes.

Support for the BGP roles framework and the OTC attribute has been available for some time in the FRR (FRRouting) and BIRD routing daemons. In September 2025, Juniper also added support for RFC9234, starting with Junos OS Release 25.2R1.
